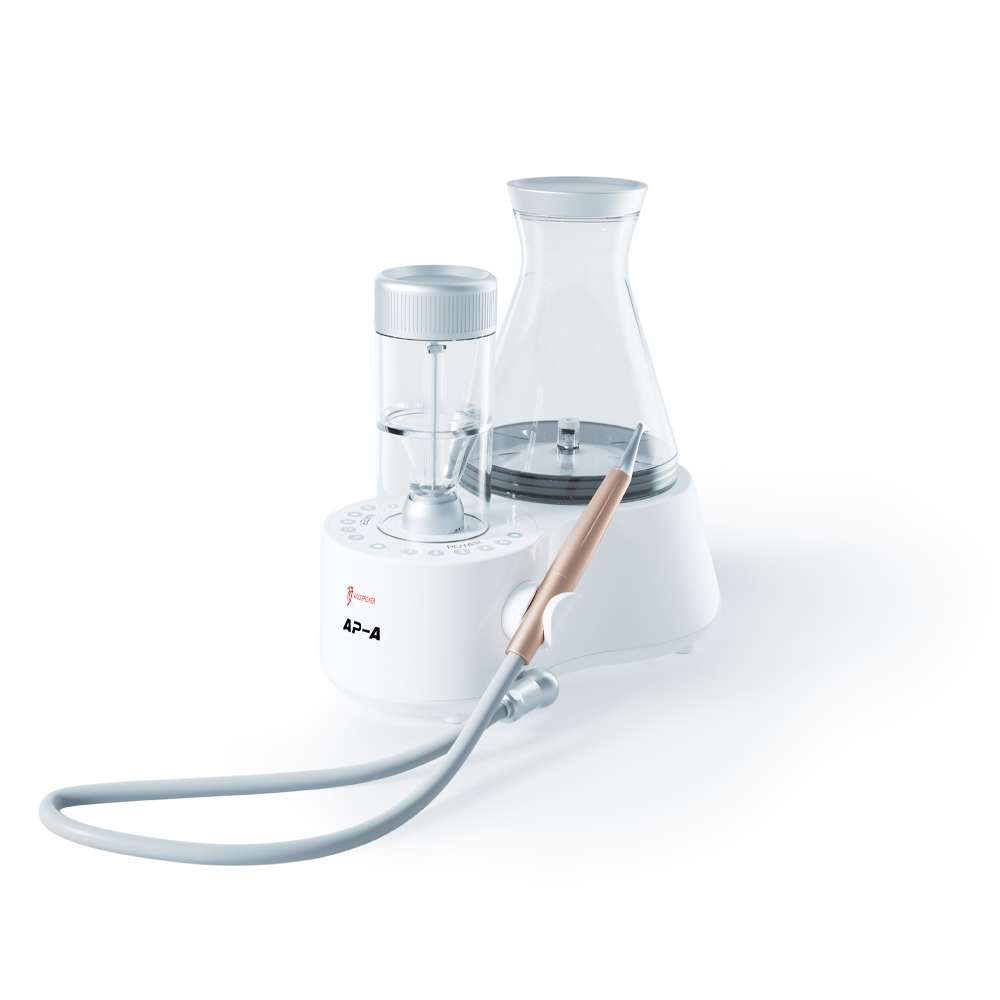

Woodpecker AP-A Dental Air Polisher

The Woodpecker AP-A Dental Air Polisher is a table top air polisher design (not hand-held like the AP-H model).

The Woodpecker AP-A offers efficient air polishing for your dental practice. This model has detachable three part handpieces to reduce powder clogging and allow for easier cleaning of the components. The Woodpecker AP-A has a smart designed powder tank to reduce fluid pressure loss and a handpiece nozzle shape to concentrate powder output for accurate air polishing.

Some of the features include:

• 2 Handpieces: 1 x AP-2 Subgingival Handpiece + 1 x AP-1 Supragingival Handpiece

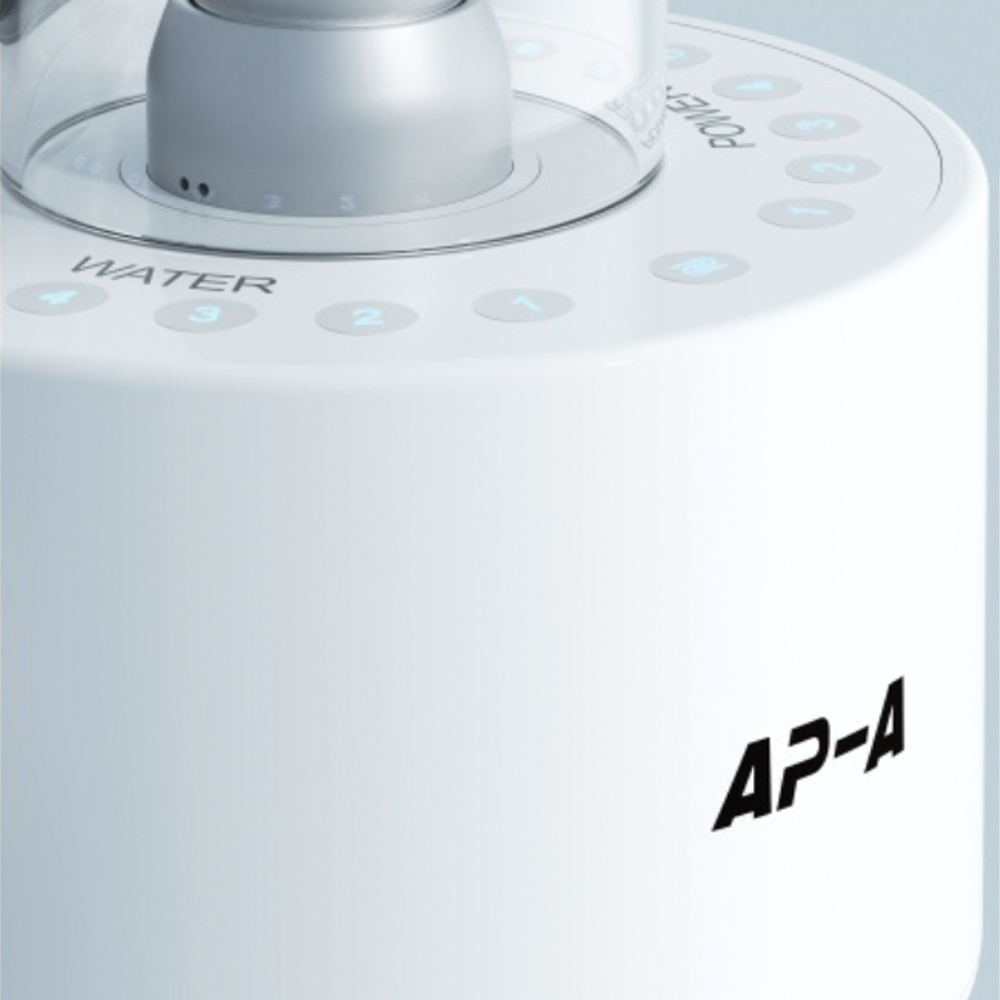

• User friendly touch control
• Small-caliber nozzle for concentrated output
• Portable design

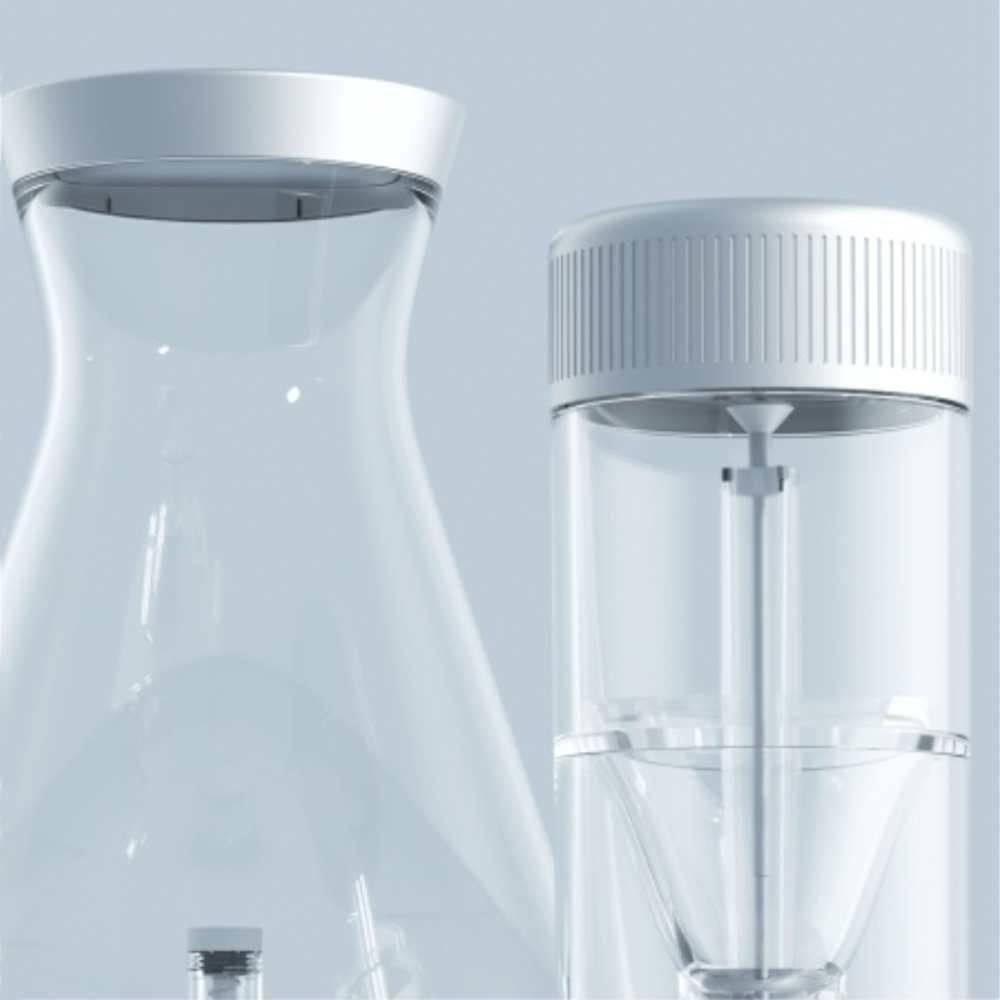

• Fully transparent funnel shaped powder tank for stable powder output
• 360° rotation nozzle
• Autoclavable and removable handpiece

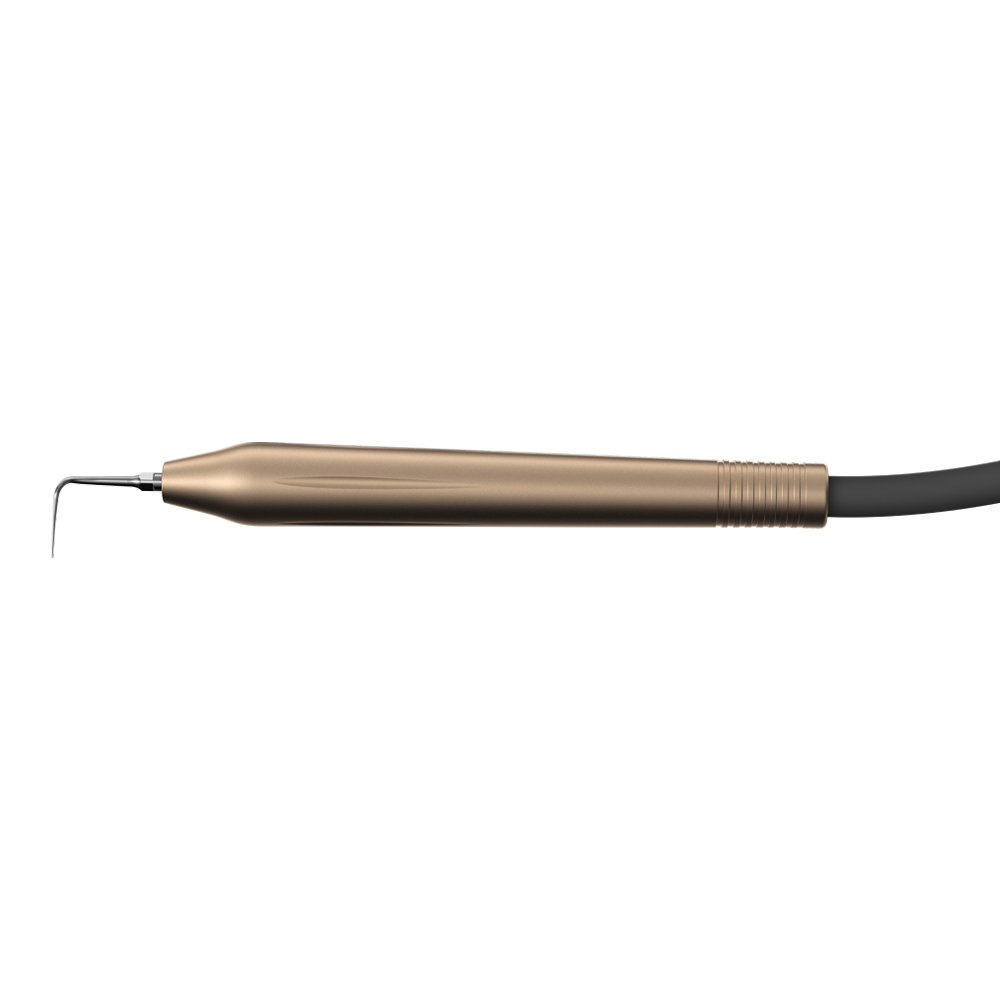

• Ergonomic handpiece for reduced hand fatigue
• Fully customizable water output & power
• Suitable for use with Sodium Bicarbonate, Glycine, Calcium Carbonate, & Aluminum Hydroxide

The AP-A Model Includes the Following Items:

• Foot Pedal x 1
• Power Lead x 1
• Subgingival Air Polisher Handpiece (AP-2) x 1
• Supragingival Air Polisher Handpiece (AP-1) x 1
• Subgingival Powder Tank x 1
• Supragingival Powder Tank x 1
• Nozzle Wrench x 1
• Subgingival Nozzles x 10

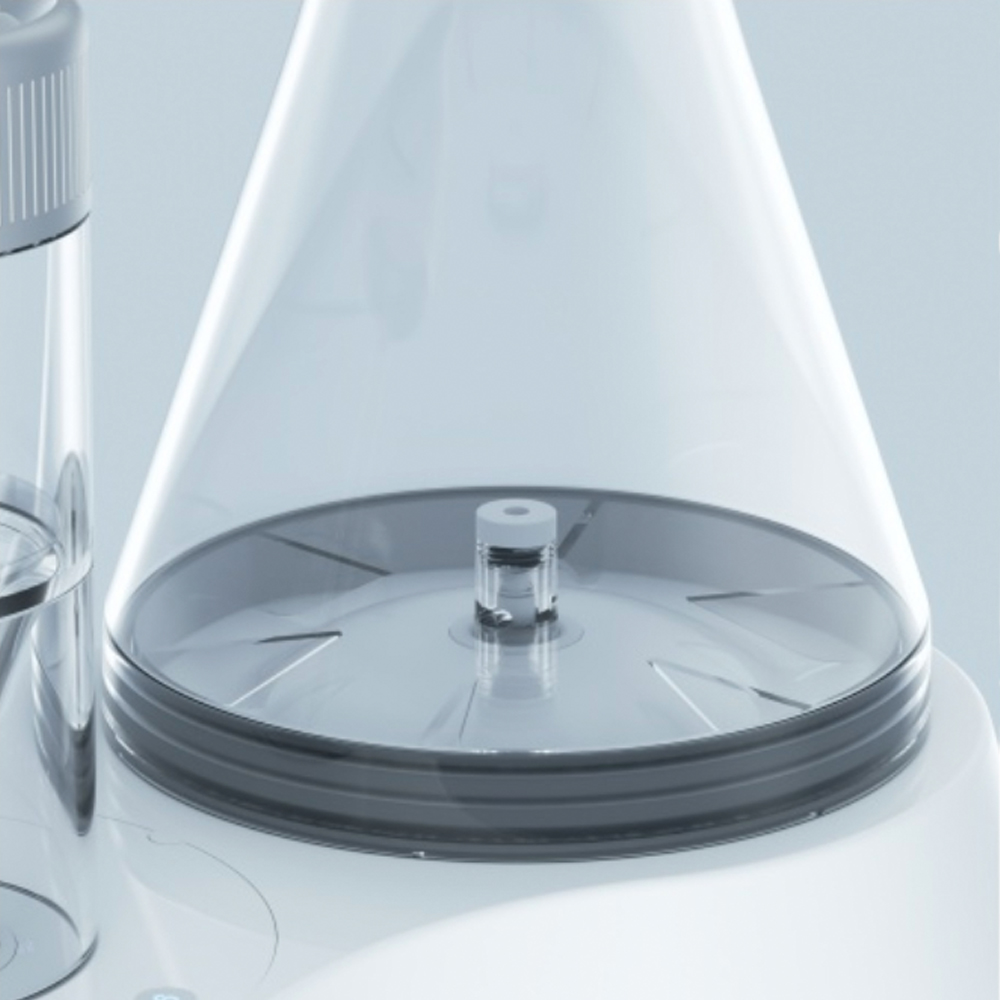

• 1400 ml Water Bottle x 1
• Sterilization Box x 2
• Needles (Long & Short) x 1 Kit
• 700ml Conical Water Bottle x 1
• Male & Female Connectors x 1 Pair
• Union Tee x 1
• Air Pipe connector x 1

Woodpecker AP-A Technical Information

Power adapter input: 100-240V~ 50/60Hz 1.1A Model: USE48- 300130SPA3

Main unit input: 30V 1.3A

Main unit insurance: T1.6AL 250V

Air inlet pressure: 5.5bar ~ 7.5bar(0.55MPa ~ 0.75MPa)

Main unit weight: 2.0kg

Main unit size: L×W×H (270mm × 170mm × 90mm)

Black Color Tubing - this is for air
Clear Tubing - this is for water

Due to the large volume or chair types and unique connections for each brand of dental chair, the required adapter to use this product may not be provided depending on your brand and connection types. If you have any questions please do not hesitate to contact us for guidance, but we have found that several offices do have their local technician install the product. The exact adapter you may need may not be included.

Tubing is generally measured by the OD Outside Diameter because it is used with push-to-connect fittings. The tubing that comes with the APA, PTB & PTA models is 1/4” OD.

If you require another adapter size (e.g., 3/8” size) for your specific chair model you must use one compatible with a 1/4” size tubing to use the tubing provided with the product.



If a 3/8” connection is needed (which is not provided by Woodpecker) we recommend one like this part #0013.

» https://www.dcionline.com/parts/product/0013

Then to use the Woodpecker tubing you will need to select one of the connections below along with the 3/8” part #0013.

Part #0030 is a good option to get the 1/4" tubing to adapt up to the 3/8 tubing to connect the the 3/8” QD.

» https://www.dcionline.com/parts/product/0030

Or option 2 is to use part #0044 this will attach to the QD and then the 1/4" tubing also.

» https://www.dcionline.com/parts/search-results?keywords=0044&search_type=all
