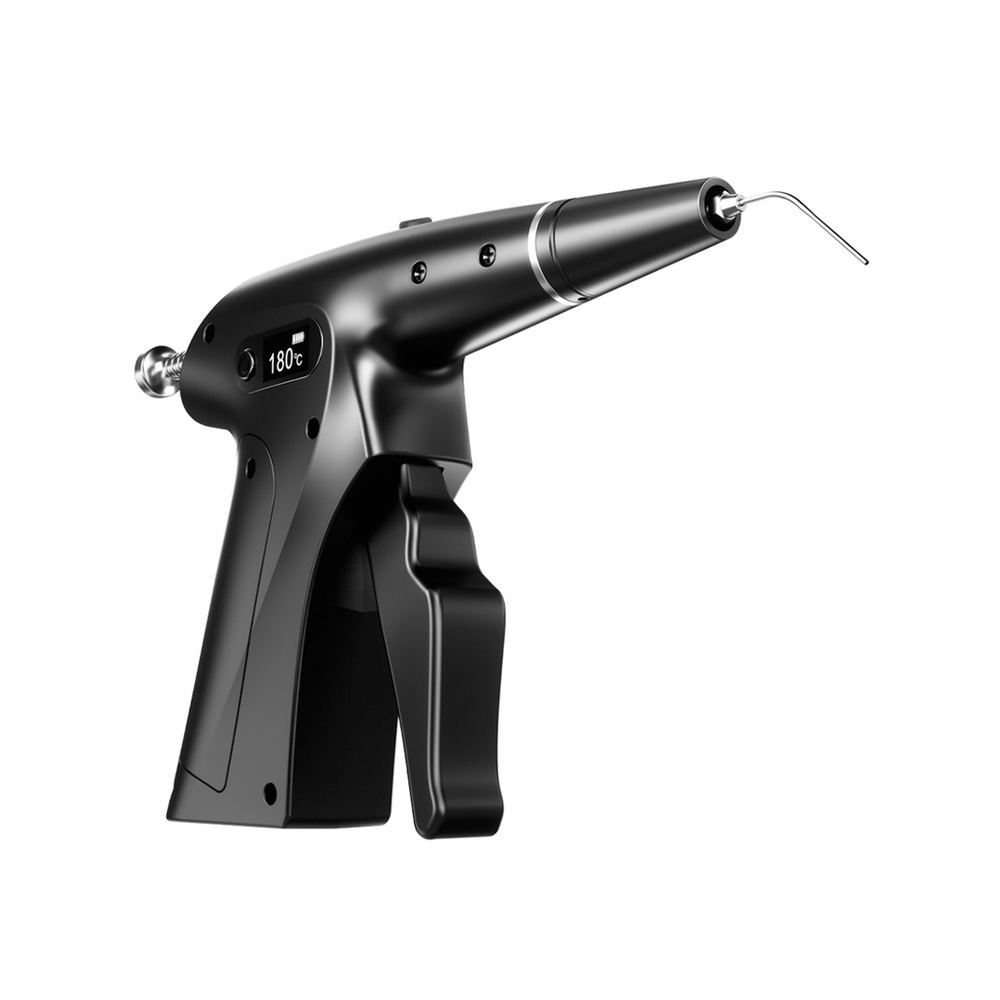

Fi-G Woodpecker Gutta-Percha Obturation - Hot Melting & Filing Gun - Black

The Fi-P (Heat & Packing) and Fi-G (Hot Melting & Filing Gun) work in conjunction with each other for the ultimate gutta-percha obturation system for your root canal procedures.

Click the Video Below to Learn How the Woodpecker Obturation System Works

WFLP (Fi-P) Includes:

• 1 x Main unit
• 1 x Charging stand
• 1 x Power adapter
• 1 x WP4004 tip (Taper 4%)
• 1 x WP4504 tip (Taper 4%)
• 1 x WP5506 tip (Taper 6%)
• 1 x WP5508 tip (Taper 8%)
• 4 x Heat insulation sleeve of tips
• 1 x Instruction manual

WFLG (Fi-G) Includes:

• 1 x Obturation Gun
• 1 x Power adapter with cable
• 1 x Gutta-percha injection needle 23G#24mm
• 1 x Gutta-percha injection needle 23G #28mm
• 2 x Gutta-percha injection needles 25G #24mm
• 2 x Heat insulation hood
• 1 x Heat insulation sleeve for injection needle
• 2 x Cleaning brush
• 1 x Pushing ram
• 1 x Wrench
• Instruction Manual

Fi-P Feature Summary

Fi-G Feature Summary

Instructions for Use

01

According to the prepared root canal, choose a proper chief gutta-percha tip.

02

Choose proper tip for Heating and Packing Instrument, place the tip into the root canal and keep it 4-7mm away from the apical foramen, and use a pad to mark the length. At the same time, choose a plugger of the same size.

03

Dip the sealing material with the chief gutta-percha tip, and then put that gutta-percha tip into the root canal.

04

Put the tip of Heating and Packing Instrument into the root canal, press heating button for heating, cut off the redundant part of gutta-percha and take it out.

05

Put the tip into the root canal, press heating button for heating, and push the tip to soften the gutta-percha until the tip reach a place where is 4-7mm away from the apical foramen. (Do not heat up for more than 3s. Meanwhile, keep the tip moving while heating and avoid heating at a certain part for a long time, or it is likely to scalding the root canal.)

06

Release the heating button to stop heating, but keep pressing the gutta-percha in the root canal with tip for about 10s.

07

Press heating button for about ls, and rapidly take out the gutta-percha 4-7mm away from the apical foramen.

08

Use plugger to impact the gutta-percha in the root canal.

09

Get the needle of Hot Melting and Filling Gun touch the surface of gutta-percha in the root canal, and stay there for 3s to soften the gutta-percha.

10

Inject the melted gutta-percha into the root canal, and withdraw the needle at the same time. (Do not fully fat the root canal at only one time. It is recommended to fill it in 3 times, or a single injection should not exceed 4mm.)

11

Use plugger to impact the injected gutta-percha in the root canal.

12

Repeat Step 9 to Step 11 until the root canal filling is finished.

Gutta-Percha Obturator Pellet/Bar

Specially formulated Gutta Percha with excellent flowing characteristics designed to be used with obturation guns such as Fi-G. Latex free and radiopaque.

2.5 mm in Diameter and 15 mm in length - Qty 100 per bottle. Shelf Life is 4 years. Melting point at 140oC.
